ce6000 Series  Graphtec C
ce6000 Series Graphtec Cutting Plotter
INR 0
INR 0 (Save NaN%)
Not Available | Free Shipping
+
Item CE6000-40 CE6000-60 CE6000-120 CE6000-120-AMO CPU 32-bit CPU Configuration Grit rolling type, digital servo drive Max. cutting area (Guaranteed cutting area) 375 mm x 50 m *1 (356 mm x 2 m *1) 603 mm x 50 m *1 (584 mm x 5 m *1) 1213 mm x 50 m *1 (1194 mm x 5 m *1) Mark scanning margin Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m) Number of push roller 2 rollers 2 rollers 4 rollers 4 rollers Max. cutting speed 600 mm/s (All directions) 900 mm/s (at 45º direction) 1000 mm/s (at 45º direction) Max. acceleration 21.2 m/s2 (at 45º direction) 13.9 m/s2 (at 45º direction) Max. cutting force (Instantaneous max. force) 2.94 N (300 gf) in 31 steps (3.2 N (330 gf)) 4.41 N (450 gf) in 38 steps (4.9 N (500 gf)) 4.41 N (450 gf) in 38 steps (4.9 N (500 gf)) Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and type of media) Repeatability Max. 0.1 mm in plot up to 2 m *1 Mountable number of tools 1 tool Blade type Supersteel Pen type Oil-based ballpoint, Water-based fiber-tip pen Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy) Perforation cutting Yes (performed by force control) Interface RS-232C / USB2.0 (High Speed) Buffer memory 2 MB Command sets GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect) Display Graphic type LCD with backlight (240dots x 128dots) Registration mark sensing system Scans the mark by optical sensor (ARMS5.0) Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz Power consumption 120 VA Operating environment (Guaranteed accuracy) 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) (16 to 32 ºC, 35 to 70 % R.H. (non-condensing)) External dimensions (W x D x H, Approx. [mm]) 672 x 338 x 266 900 x 593 x 1046 1541 x 736 x 1250 Weight 10.5 kg 21 kg (including stand) 40.5 kg (including stand) Included software *2 Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller Compatible OS *2 Windows 10 / 8.1 / 8 / 7 / Vista , Mac OS 10.6 to 10.10 Compatible Standards Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A
VIEW DETAILS BUY ADD TO CART
24 Graphtec CE6000-60 Hig

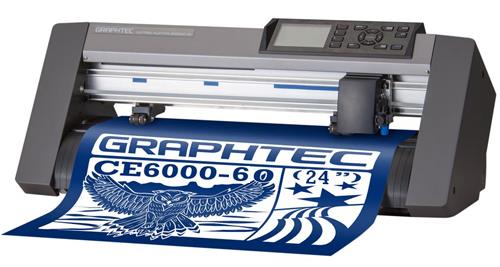

24 Graphtec CE6000-60 High Performance Vinyl Cutting Plotter
INR 80000
INR 80000 (Save 0%)
Not Available | Free Shipping
+
The CE6000 are Graphtec's professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, greener with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle. The new 24" Graphtec CE6000-60 vinyl cutter is fast, powerful and portable. The Graphtec CE6000-60 features a digital servo motor, contour cutting capability and Graphtec Studio software. The Graphtec CE6000-60 vinyl cutter is an excellent choice for apparel decorators, sign makers and entrepreneurs looking for quality, reliability and portability.
VIEW DETAILS BUY ADD TO CART
CE6000 Graphtec Cutting P
CE6000 Graphtec Cutting Plotter
INR 80000
INR 80000 (Save 0%)
Not Available | Free Shipping
+
The CE6000 are Graphtec’s professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.
VIEW DETAILS BUY ADD TO CART
RTS / RB Cutting Plotter
RTS / RB Cutting Plotter
INR 18000
INR 18000 (Save 0%)
Not Available | Free Shipping
Classification Single-blade Cutter for more detail call on @+91 9990011882 +91 9990011889
VIEW DETAILS BUY ADD TO CART
GCC- AR 24 Cutting Plotte
GCC- AR 24 Cutting Plotter
INR 35000
INR 35000 (Save 0%)
Not Available | Free Shipping
GCC- AR 24 Cutting Plotter for details call Address: 2866/4 - 3rd Floor, Chuna Mandi, Paharganj - 110055 New Delhi India Contact: +91 9990011882 +91 9990011889
VIEW DETAILS BUY ADD TO CART
High Quality 4 Axis CNC C
High Quality 4 Axis CNC Cutter / CNC Router
INR 2000000
INR 2000000 (Save 0%)
Not Available | Free Shipping
High Quality 4 Axis CNC Cutter / CNC Router For 3d Mould Working: Application It is very suitable for making deep foam, plastic, stone, wood mould works. surely also can widely used for flat materials such as flat stone, wood, aluminum, copper, PVC and other hard and soft materials. SPECIFICATIONS 1.4 axis cnc cutter/cnc router 2.z axis height 400-700mm 3.spindle rotate 180 degree 4.optional rotary device Application industry 1. Decoration Industry 2.Mould Industry 3.Craft Industry 4.Advertising Industry 5.Furniture Industry Features 1. Lathe bed adopts strong welded steel tube to avoid distortion. 2. Spindle rotate 180 degree,you can make 2d 3d engraving on curved surface, arc-surface, bending surface, larger dimension mould, statues, sculptures, cylinders... 3. 400mm-700mm height Z axis to burden heavy and thick materials 4. Servo motor and driver 5. 4 axis control system 6. Optional rotary device for cylinders, large statues, sculptures, complexity moulds processing. 7. Professional design and high quality machine parts provides this CNC machine with low break down rate. Technical Parameters Model Robozz : 1225 X,Y,Z ,A axis working area : 1200*2500*600mm*180degree Whole structure : Welded Steel gantry structure X,Y,Z structure : Taiwan HIWIN Square linear guide rail X,Y structure : Rack and pinion transmission, high speed and more stable;Y -double motor drive Z structure : Imported ball screw, high precision Max. idling speed : 50m/min Max. working speed : 25m/min Repositioning Accuracy : ±0.05mm X Y Z working Accuracy : < 0.02mm Spindle : 6kw air-cooling spindle Operation language : G code Driving system : servo motor and driver Operating system : 4 axis WEIHONG control system Working voltage : AC380V,50-60Hz Software : Power Mill, UG Running environment : Temperature: 0-45; Relative humidity:30%-75% Request Callback
VIEW DETAILS BUY ADD TO CART
CNC Router Four Axis
CNC Router Four Axis
INR 1325000
INR 1325000 (Save 0%)
Not Available | Free Shipping
The CNC Router Four Axis offered by us is manufactured using quality raw material. Various parts of this routers like syntec ez-4me control system, yaskawa servo motors, shampo reducer, hsd spindle, delta inverter and becker vacuum pump are sourced from trustworthy vendor base. These machines are used to make surface carving, arc-surface milling, bend surface machining for 4d jobs, like special shaped arts, bended doors or cabinets. In addition to this, these machines also work on foam, MDF, acrylic, wood, and the soft metal, Wood, Plastic, Aluminum, Di-Bond, Engraving Board, Foamex. Engineering plastics, marble, acrylic, Perspex, PVC, Composite panel, Copper, Alloys, MDF ,etc. Parameters: X Y Z A axis working area: 1300*2500*400mm* 180 degree Table size:1530*2940mm XYZ travel positioning accuracy: ±0.02/300mm XYZ repositioning positioning accuracy:±0.02/300mm Table surface: Vacuum and T-slot combined Frame: Steel tube structure Drive system X-Y axis: Rack and pinion Drive system Z axis: Ball screw Max power consumption: 4.2KW(without spindle)
VIEW DETAILS BUY ADD TO CART
RTS1325 CNC Router With 6
RTS1325 CNC Router With 6.0kw Air Cooling Spindle
INR 680000
INR 680000 (Save 0%)
Not Available | Free Shipping
Machine Picture, Applications and Specification Name Work Size Controlle System Spindle&Speed Max Travel/Working Speed CNC ROUTER 1300*2500*300mm DSP 6KW HSD Spindle 0-18000RPM 35m/Min 15m/Min Standard Configuration : · Working Area : 1300mm *2500mm*300mm ( X,Y,Z Axis ) · DSP Controller System · 6KW Italy HSD Air Cooling Spindle · 7.5 KW Fulling Inverter · 8 Wires Stepper Motor
VIEW DETAILS BUY ADD TO CART
Mini CNC Engraving Machin
Mini CNC Engraving Machine
INR 425000
INR 425000 (Save 0%)
Not Available | Free Shipping
We are engaged in providing the best quality range of Mini CNC Engraving Machine. Features: Easy to operate High performance Excellent functionality Technical Specifications: X, Y working area 600*900 mm Z working area 80 mm Table size 720*1050 mm Resolution 0.005 mm Lathe structure Seamless welded steel structure X,Y structure Imported ball screw made in Germany Z structure Imported ball screw made in Germany Max. idling speed 8 m/min Spindle motor power 1.5 KW Spindle rotate speed 0-24000 r/min Working voltage 220 V / 50 Hz Working mode Stepper Command G code, HPGL Operating system Weihong card Diameter of cutter 3.175-12.7 mm Cooling mode Water-cooling CNC Engraving machine 1.5 KW water-cooling spindle DSP control system, Ball screw made in Germany
VIEW DETAILS BUY ADD TO CART
